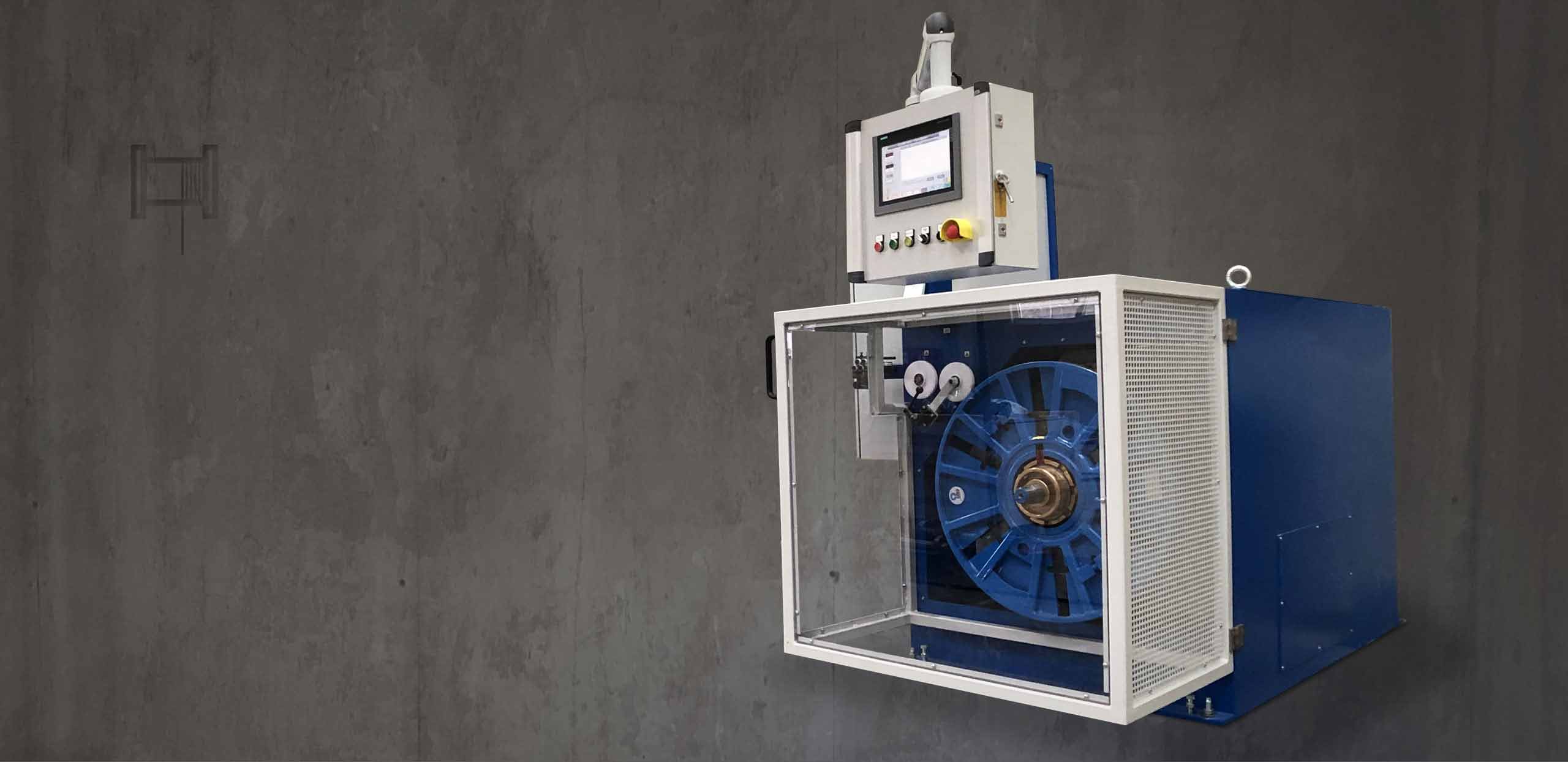

Horizontal spooler

Traversing bobbin for weights up to 1,000 kg

Coil types: 560 and 710 sheet metal reels, Z2-reels (800) DIN 46397 or by arrangement
Coil weight: max. 1,000 kg incl. coil
Wire range: Ø 0.1 – 1.7 mm
Coil tension: adjustable on the central control panel
Speed: adapts automatically of the preceding machine
Overall dimensions L x W x H: 4,900 mm x 2,100 mm x 2,600 mm
Weight: approx. 3,600 kg
Connected load: 12 kVA
Supply voltage: 400 V, 50 Hz
Control voltage: 24 V DC
Rated current: 25 A

Product requirements:

compact design

short set-up times with good operability at the same time

diverse ready-made containers


sustainable system construction
