| Spool types: | SD300K, K355, SH390K |
| Spool weight: | max.15.0 kg |
| Wire range: | Ø 0.2 – 2.0 mm |
| Spool tension: | adjustable on the central control panel with touch panel |
| Strength: | about 15 N/mm² |
| Speed: | 5 – 50 m/min |
| Overall dimensions L x W x H: | 1,466 mm x 954 mm x 2,095 mm |
| Weight: | approx. 550 kg |
| Connected load: | 3 kVA |
| Connection voltage: | 400 V, 50 Hz |
| Control voltage: | 24 V DC |
| Nominal current: | 10 A |

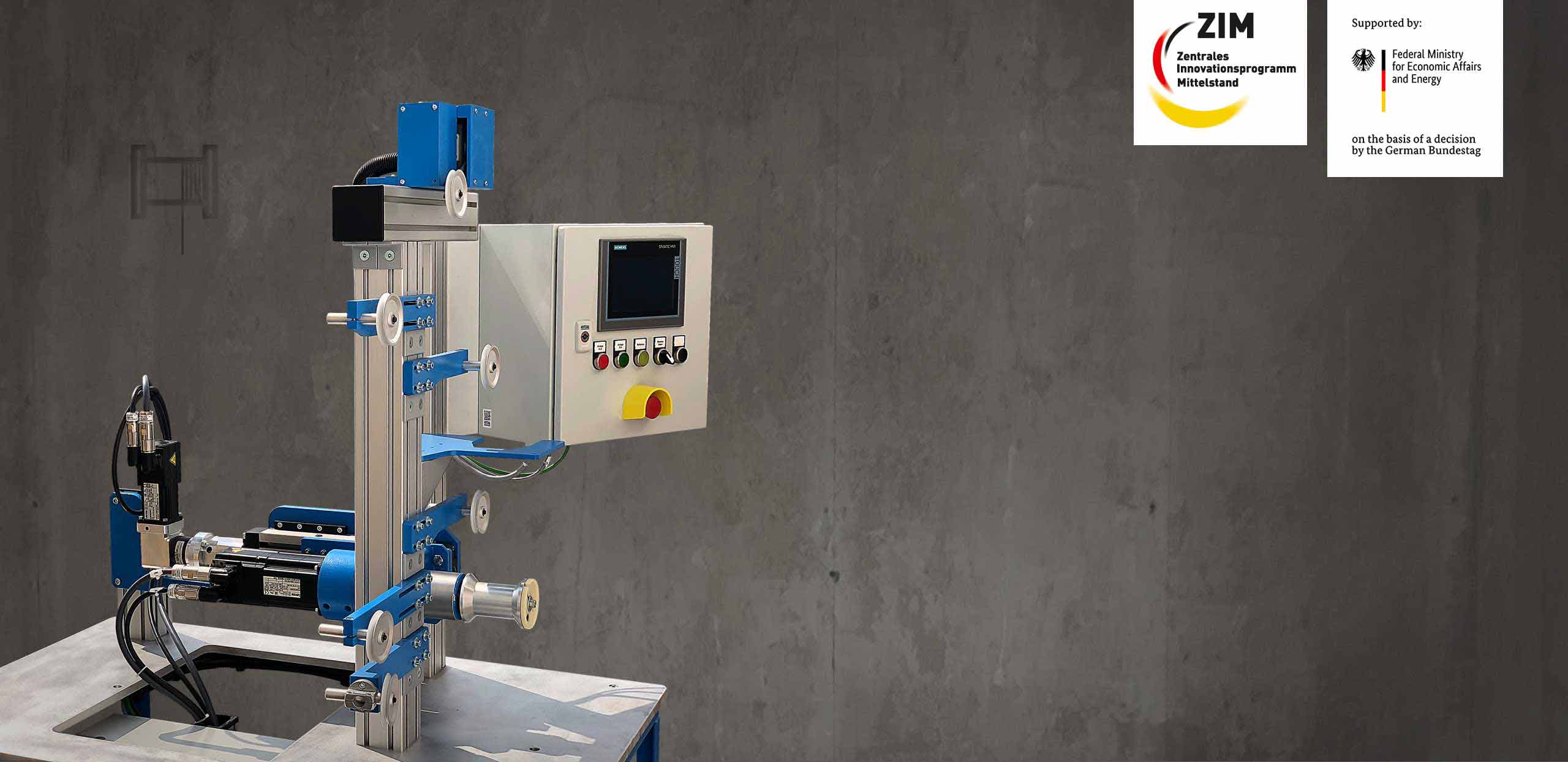

Precision winder
for the best possible results when laying the wire
Task:
Optimization of all machine parameters to achieve a perfect winding result
Product requirements:
compact design
short set-up times
easy operation
maintenance-friendly
sustainable system design
