Projects

Vertical spooler with lifting device

Spooler for wires with a diameter of 6 - 11 mm

Double driver with straight unit

Compact, universal driver

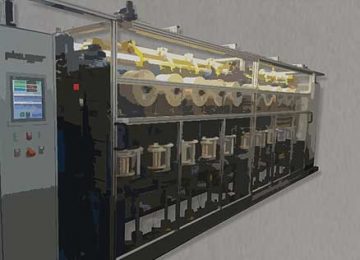

Twister

Twister with 10 drilling units on both sides

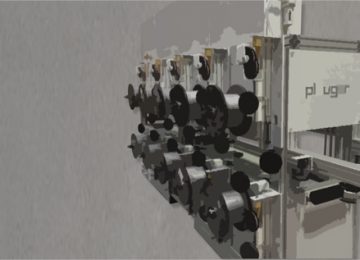

Multipal winder

Modular construction of the coil line

Single pass bull block

Pulling machine to maximize process reliability in cold heading processes

Single pass bull block with overhead drain

Pulling machine for the calibration of wires in front of cold heading presses

Warm drawing machine

Drawing machine for temperature ranges up to 1,300 °C

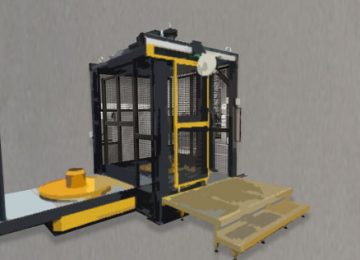

Bending winder for round and profiled wire

Fast crown stock changes to reduce machine downtimes

Straight drawing machines

Drawing line with a total of four drawing blocks

Drawing plier bull block

Weight-optimized drawing plier

Drawing-in pliers sheathing

Maximum protection against damage to the drawing capstan and the drawing-in plier

Bending coiler

Overhead bending coiler for wire diameters between 2 and 10 mm

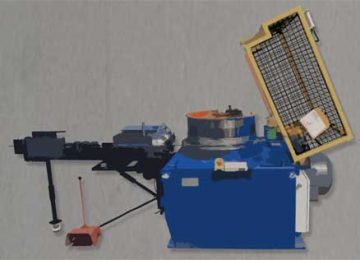

Single block

Single block with two die boxes for different drawing liquids

3-fold wet-draw bobbin winder

Combination of wet drawing machine and winding machine for processing wires up to 4 mm diameter.

Bending winder and driver

Bending winder for high coil weights

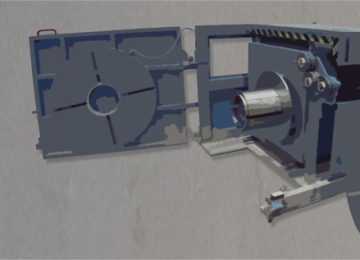

Horizontal coiler

Horizontal coiler for high coil weights

Multipal unwinder

Compact design due to second drain level

Wet drawing machine

Wet drawing machine for materials with high forming temperature

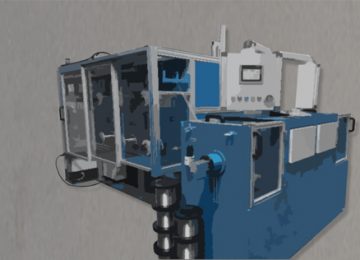

Rewind line

6 winding units for coil sizes up to diameter 250 mm

Vertical bobbin winder

Coilspuler for a wide range of products

Horizontal spooler

Traversing bobbin for material-gentle winding

Winding plant

16-fold winding unit at the end of a heat treatment line

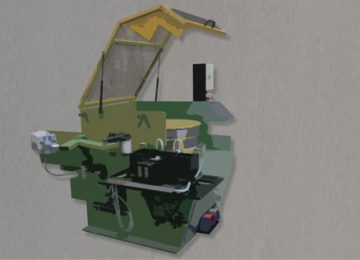

Drawing block

Drawing block for wire diameter up to 13 mm

Draw winder with barrel winder

Wire drawing machine with optional wire laying on spool or in barrel

Wet drawing line

Wet drawing machine with pay-off and take-up unit

Wire rod pay-off

Hydraulically tiltable up to 90° Motor driven

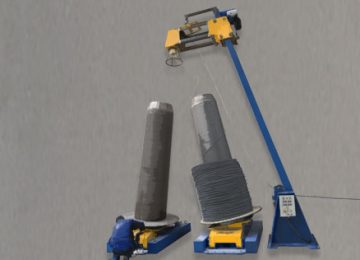

Double overhead pay-off

In kompakter Bauweise für engste Platzverhältnisse

Rewinder with spool clamping

4 winding positions for bobbins up to 1.500 kg and a width of 400 - 840 mm

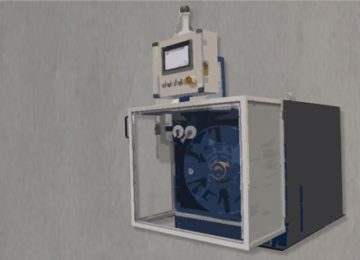

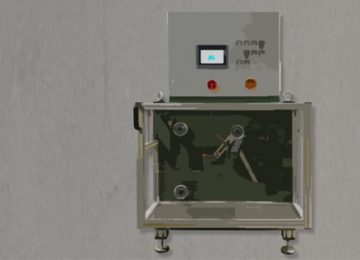

compact vertical winder

Spooler for wire diameters of 0.2 - 2.0 mm

Drain turntable

Driven drain turntable for crown sticks and barrels

Horizontal spooler

Traversing bobbin for weights up to 1.000 kg

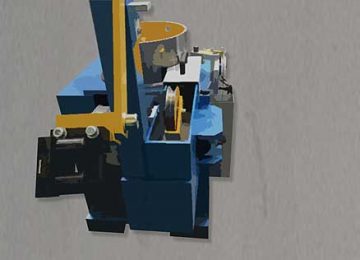

Horizontal pulling machine

Pre-drawing machine for installation in front of multi-stage presses

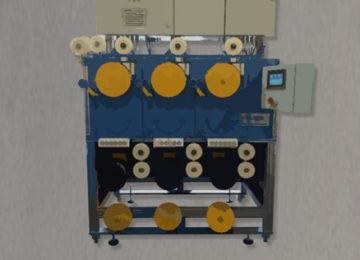

3-fold winder

Modular winder behind a furnace line

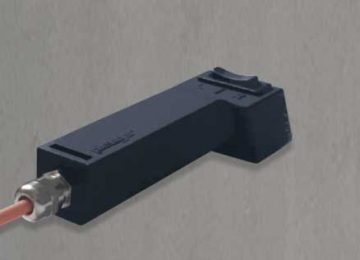

Mobile remote control welding turntable

Robust 3D plastic printing

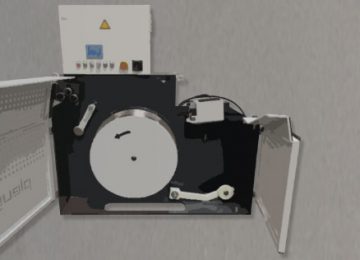

Winder with passing disk

Very compact machine housing

Precision winder

for the best possible results when laying the wire

Precision dancer for extra-fine wires

Actuator controlled dancer for optimal regulation of wire tension

Winder

Vertical winder with integrated laying

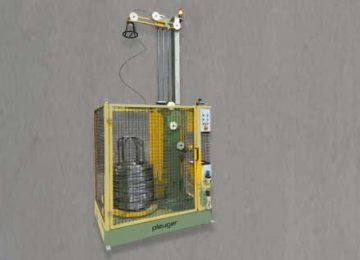

Unwinder with overhead pay-off

Very compact design

Dancer

Dancer for regulating wire tension with a diameter of 1.5 to 4.5 mm

Spooler Ø 300

Horizontal spooler with pull-through disc

Glow spooler

Horizontal spooler with traversing spool

Overview projects
