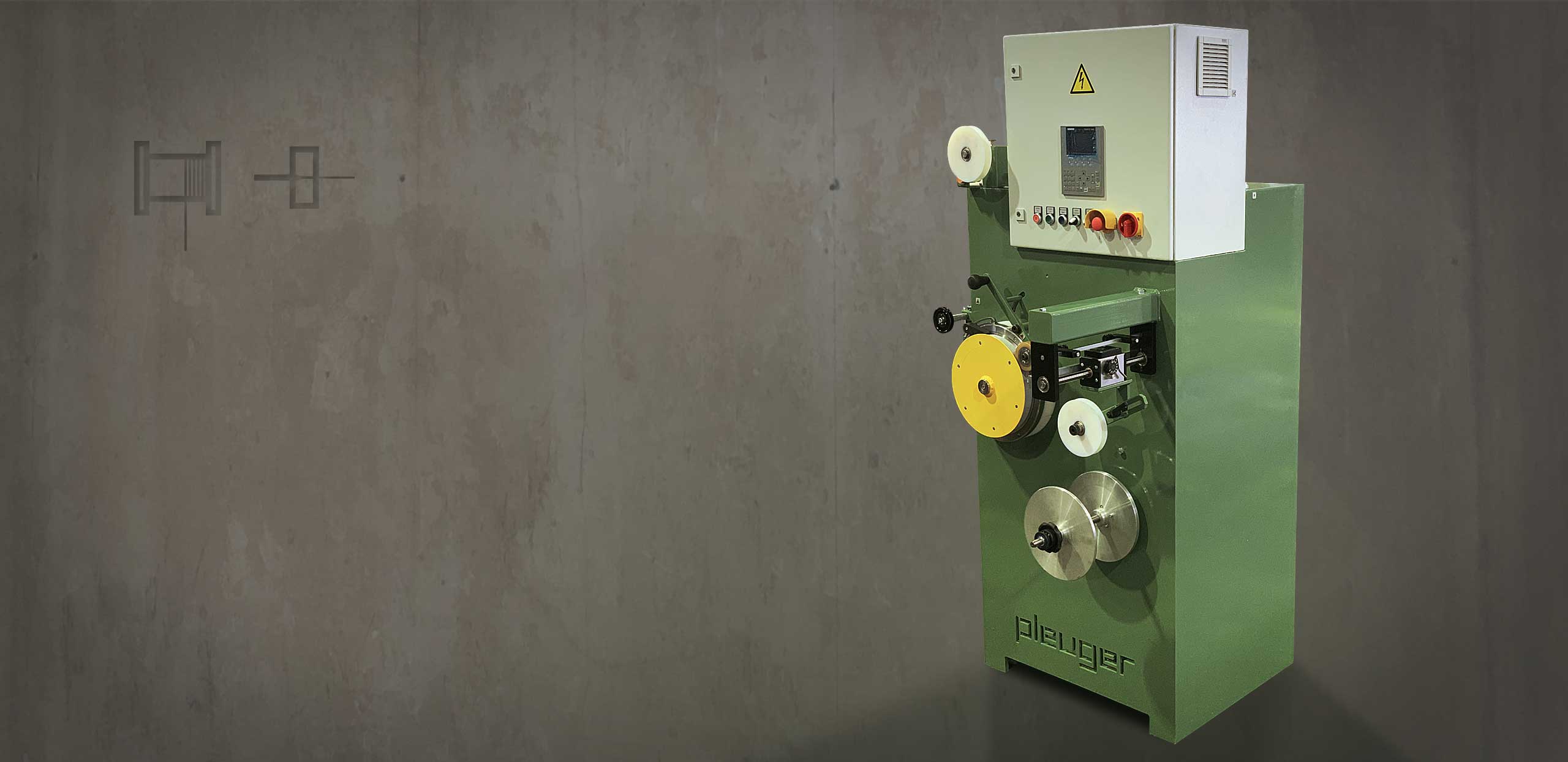

Winder with passing disk

Very compact machine housing

Coil types: SD300K, K250 DIN 46399, K355 and SH390K
Wire range: Ø 0,2 – 2,0 mm
Spool tension: adjustable on the control panel
Speed: 4 – 40 m/min
Overall dimensions L x W x H: 871 mm x 1.070 mm x 1.905 mm
Weight: approx. 660 kg
Connected load: 3 kVA
Connection voltage: 400 V, 50 Hz
Control voltage: 24 V DC
Nominal current: 10 A

Task:

Coiling of wires with a diameter of 0.2 – 2.0 mm



Product requirements:

compact design

short set-up times and ease of use

diverse ready-made containers

easy to maintain
