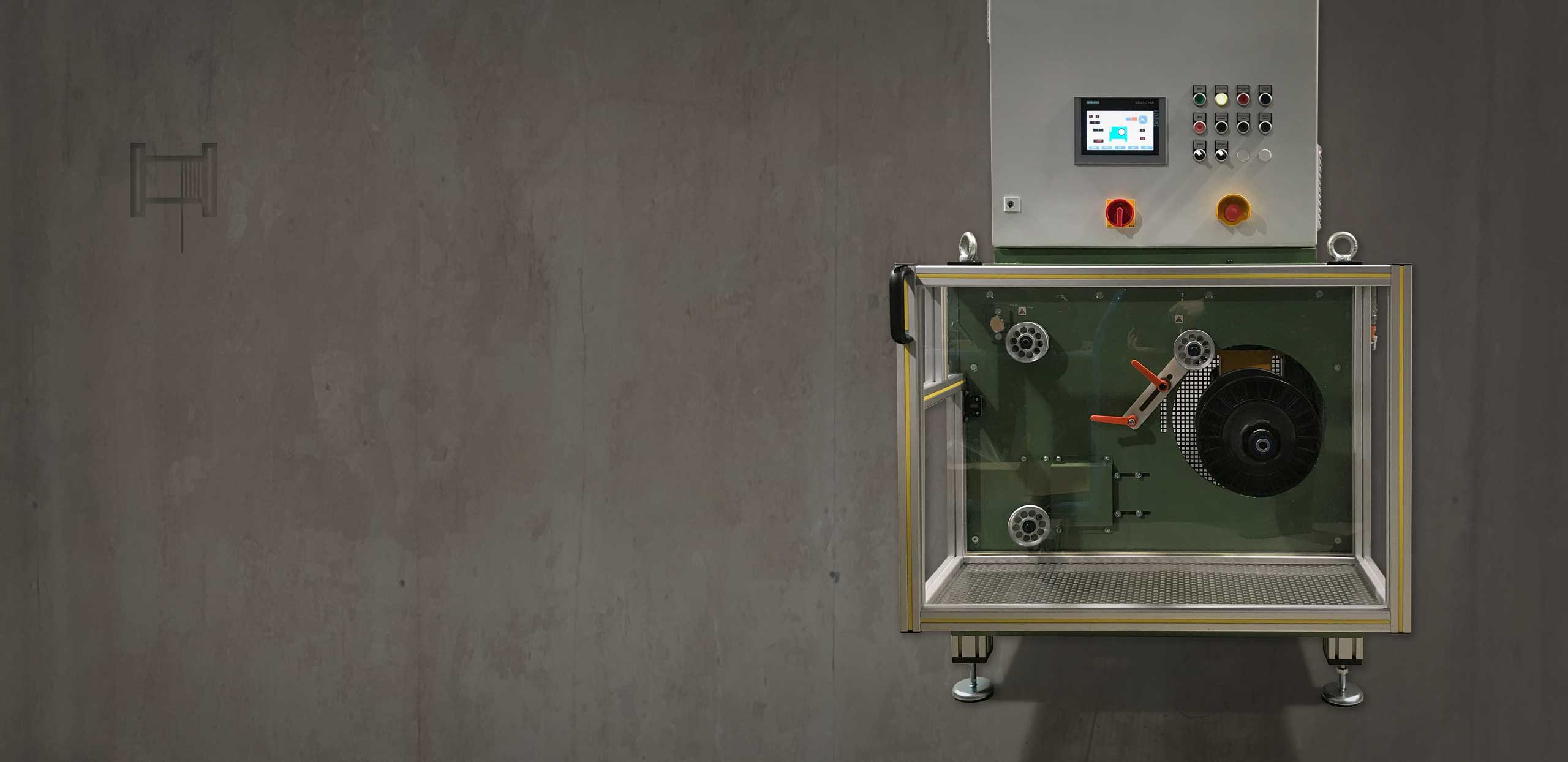

Horizontal spooler

Traversing bobbin for material-gentle winding

Number of winding positions: 1
Wire dimensions: Ø 0.1mm – 2.0 mm
Speed: up to 120 m/min
Tensile strength: 2 200 N/mm²
Coil types: K160, K200, K250, K355
Overall dimensions L x W x H: 1 200 mm x 1 800 mm x 2 080 mm
Weight: approx. 850 kg

Task:

Precise winding of sensitive wires at the end of a treatment line.



Product requirements:

digitally adjustable wire tension

short set-up times

low maintenance
